Designline Drop In Dry Heat Bain Marie HBM4

Click image to enlarge

Product Code

£3912.47 (Including VAT) £3260.39 (Excluding VAT)
Out of Stock
Quality Assured Guarantee Finance
Quality Assured Guarantee Finance Available

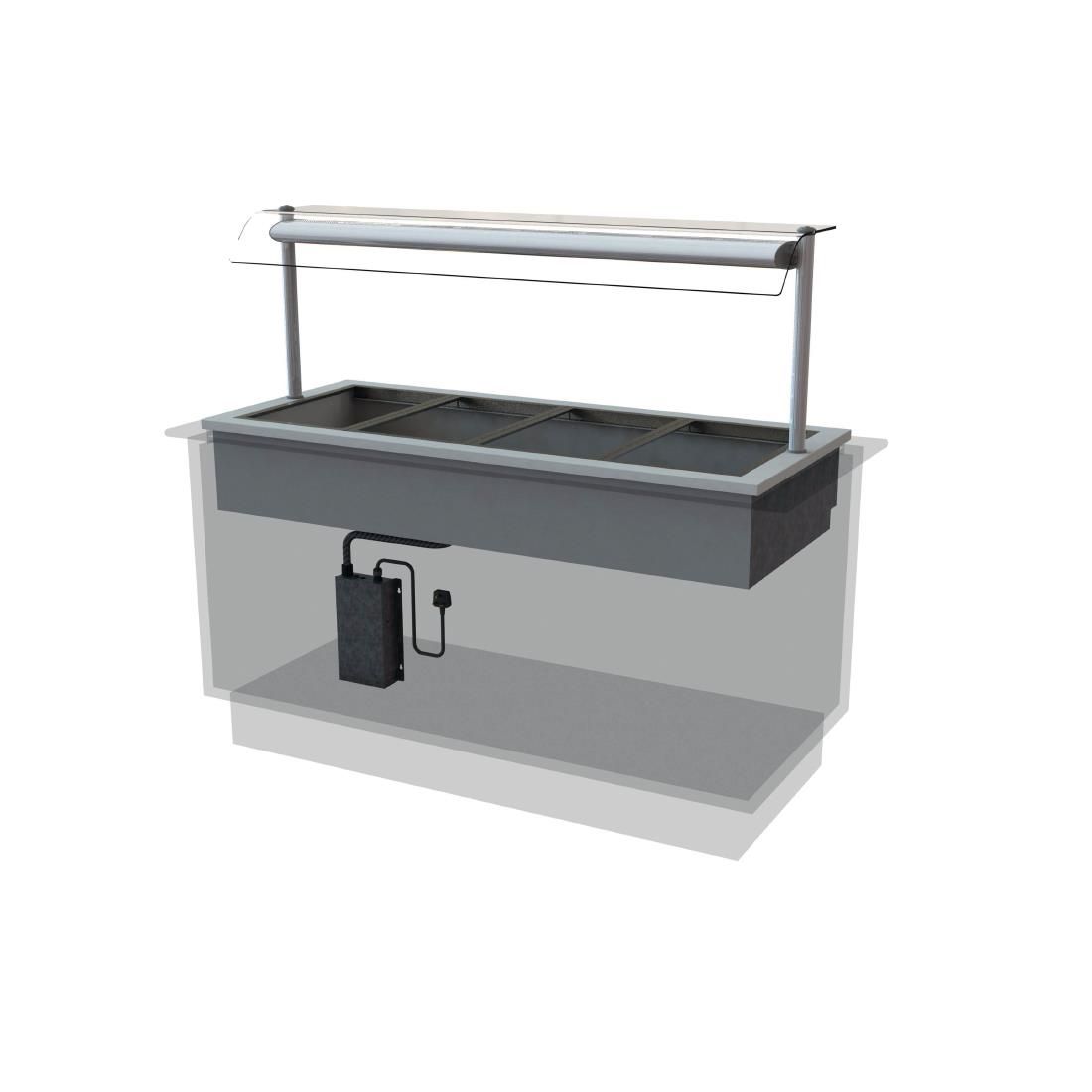

Designline Drop In Dry Heat Bain Marie HBM4

Display, illuminate, heat and protect pre-cooked food with CED's elliptically shaped Designline self help dry heat bain marie drop in display. This 4/1 Gn size hot display features a 4/1Gn heated tank area and individual 1/1Gn gastronorm container support collars, which accept various sized Gn containers up to 150mm deep . The display fits into a pre-formed cut out made in a countertop . The self help superstructure is made from bright polished steel and alluminum curved profiles, with curved, toughened glass sneeze screen protection to the customer side of the display. Product illumination/ surface heat is provided by infra red quartz heat lamps, housed in the elliptical profile gantry. Base heat and surface heat can be adjusted & 'locked' from the operator side of the gantry, by digital temperature display ( control panel ) and adjustable dimmer switch, mounted at eye level. The display has 24 hour operation & is factory set to hold food core at 85 deg. C. Modular removable heater element covers in the heated well give even heat spread & make for easier cleaning. The display comes complete with lifting kit for installation and is supplied with a concealed control box & plug top on a 2M lead. GN's Sold Separatley.

  • Curved display in bright polished steel and aluminium profile
  • Gantry fitted with curved toughened glass sneeze screen for food protection
  • 24 hour operation as standard
  • Self help application
  • Features gantry mounted digital temperature display, base heat control panel and top heat control by dimmer switch (to operator side of display)
  • Supplied with lifting kit for installation and concealed control box & plug top on a 2M lead
  • Curved glass profile is designed to complement other units within the Designline range
  • Product illumination/ surface heat provided by infra red quartz heat lamps to each 1/1Gn section, housed within an elliptical profile gantry
  • Base heat is provided to each 1/1 GN section by individual heater elements
  • Supplied with individual 1/1 GN gastronorm container support collars, which accept various sized GN containers up to 150mm deep

Dimensions: 535(H) x 1525(W) x 660(D)mm
