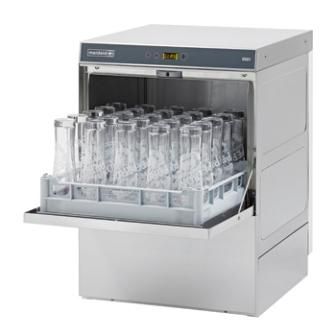

Maidaid C502-GW 500mm Basket No Drain Pump

Product code: MA563
  2 year warranty Bright LED display with soft touch panels Accurate detergent and rinse aid peristaltic dosing as standard Supplied with two op... Read more
£2,715.60 (inc VAT)£2,263.00 (exc VAT)
In stock
Click & collect available
Finance available
Quality assured guarantee
Have a question about this product?
Our team of experts will be happy to help, call us on 01482 320622
Get in touch
Product Information
Delivery & Returns



  • 2 year warranty
  • Bright LED display with soft touch panels
  • Accurate detergent and rinse aid peristaltic dosing as standard
  • Supplied with two open cup/glass racks
  • Three selectable cycle options plus special application cycle options
  • Cycle times between 70 & 240 secs, including special cycles
  • Cycle times can be tailored to site requirements
  • Selectable energy saving mode
  • Selectable thermostop ensures optimum rinse temperatures
  • Automatic self-cleaning at end of service
  • Surface scrap tray filters
  • Operational self diagnostics
  • Twin traffic light display indicate machine status
  • Drain pump optional
  • Partial double skinned reducing noise and heat loss
  • Suitable for hot (max 50°C) or cold water supply at 2 to 4 bar dynamic supply pressure
  • Machines fitted to cold water supplies will not be capable of running repeated short cycles.
  • The cycle time will automatically be extended to allow recovery of correct operating temperatures
  • Wash temperature 60°C (adjustable)
  • Rinse temperature 65°C (adjustable)
Width x Depth x Height mm 580 x 610 x 815mm
Feet Height 10mm-20mm
Basket size 500x500mm
Maximum useable height 320mm
Door Opening 365mm
Cycle times 70/110/150 Seconds
Water consumption per cycle 2.7 Litres
Wash tank capacity 20 Litres
Phase - Options Single/3-Phase
Power – Single Phase Options 2.6kW(13Amp),4.5kW(20Amp),
6.5kW(30Amp)
Power – Three Phase 6.5kW(16Amp)
Detergent pump Peristaltic - non timed
Rinse aid pump Peristaltic - non timed
Drain pump Optional
Breaktank No
Water supply pressure 2 to 4 Bar
Body Construction Partial Double Skin
Door/Hood Construction Double Skin
Scrap Trays Yes
Internal Rinse Booster Pump N/A
Number Of Cycles 4
Total Maximum Load(as supplied) 6.5kW(13Amp) - Single Phase
