Maidaid Evolution 512 With Drain Pump

Click image to enlarge

Product Code

£3790.80 (Including VAT) £3159.00 (Excluding VAT)
Quantity:
Quality Assured Guarantee Finance
Quality Assured Guarantee Finance Available

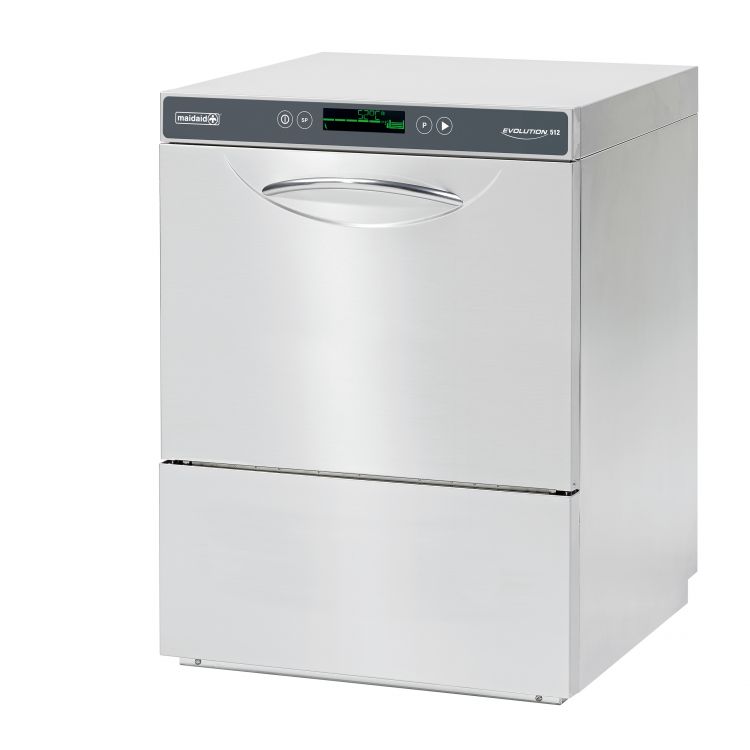

Maidaid Evolution 512 With Drain Pump

  • 2 year warranty
  • Polychromatic LCD display and user interface giving uncomplicated machine status updates
  • Improved wash action from quick release parallel wash & rinse arm design
  • Stainless steel scrap tray filters supplied as standard
  • Improved triple wash tank filtration
  • Four button control fascia with special programmes button, operational self-diagnostics & alarms menu
  • Drain pump & breaktank supplied as standard
  • Three standard cycle options with an extensive range of special cycles
  • Cycle times can be tailored to site requirements
  • Reduced water consumption
  • Comprehensive automatic self cleaning at end of service
  • Selectable energy saving mode
  • Selectable thermostop ensures optimum rinse temperatures
  • Fully double skinned minimising both acoustic output and reduced heat loss
  • Patented dual flow wash pump with soft start - reducing power consumption whilst retaining wash efficiency
  • Full door seal & door ajar facility
  • Moulded wash tank for easy cleaning
  • Moulded rack guide
  • Accurate detergent and rinse aid peristaltic dosing pumps as standard
  • Priming and dosing of chemicals enabled from fascia controls
  • Supplied with one pegged rack, one open cup/glass rack & cutlery insert
Width x Depth x Height mm 600 x 600 x 810mm
Feet Height 10mm-20mm
Basket size 500x500mm
Maximum useable height 365mm
Door Opening 390mm
Cycle times 90/120/150 Seconds
Water consumption per cycle 1.8 Litres
Wash tank capacity 15 Litres
Phase - Options Single/3-Phase
Power – Single Phase Options 2.6kW(13Amp),4.5kW(20Amp),
6.5kW(30Amp)
Power – Three Phase 6.5kW(16Amp)
Detergent pump Peristaltic-Non Timed
Rinse aid pump Peristaltic-Non Timed
Drain pump Yes
Breaktank Yes
Water supply pressure 2 to 4 Bar
Body Construction Double Skin
Door/Hood Construction Double Skin
Scrap Trays Yes
Internal Rinse Booster Pump Yes
Number Of Cycles 3
Total Maximum Load(as supplied) 6.5kW(30Amp) – Single Phase
